Air Cooled Condensing Unit Cold Storage Semi-hermetic Compressor All Models 4FE-28-40P

The advantage of the compressor:
Energy efficient
High-efficiency profile
Infinite or closely stepped capacity control
Optimum economiser operation
Universal
R134a, R407C and R22 (R404A, R507A upon request)
With and without economiser (ECO)
Flexible
Dual capacity control
Changeable between 4-stage and infinite capacity control-without retrofitting the compressor
Suction and discharge gas connections can be rotated in 90" increments

• developed technology,compact deminsions ,small volum and space .
• high precision machining to ensure the compressor confirm with the standard.
• CNC processing center,concentricity due to specific processing technology,mininal dead space .
• steady operation,small vibracation,and low nosie.excellent stability,
• refrigent like R22 ,R404 are adopted to protect environment, for low and mid temperature application,
• electrical motor protect device,ptc sensor.
• wear resistant driver gear,chrome plated piston rings and aluminum pistons ,hardened crank-shaft. low friction bearing set
• efficient valve plate design,high refrigerating capacity and low energy consumption,effcient compression rate.valve reed made of imported impact resistant spring steel.
• general spare parts,convenient maintenance,

• 4JE-15(Y)	2	63.5	4	4.0	190	28	1 1/8	42	1 5/8
  4JE-22(Y)	1	63.5	4	4.0	190	28	1 1/8	42	1 5/8
  4HE-15Y	3	73.7	4	4.0	183	28	1 1/8	42	1 5/8
  4HE-18(Y)	2	73.7	4	4.0	190	28	1 1/8	42	1 5/8
  4HE-25(Y)	1	73.7	4	4.0	194	28	1 1/8	54	2 1/8
  4GE-20Y	3	84.6	4	4.5	192	28	1 1/8	54	2 1/8
  4GE-23(Y)	2	84.6	4	4.5	192	28	1 1/8	54	2 1/8
  4GE-30(Y)	1	84.6	4	4.5	206	28	1 1/8	54	2 1/8
  4FE-25Y	3	101.8	4	4.5	196	28	1 1/8	54	2 1/8
  4FE-28(Y)	2	101.8	4	4.5	207	28	1 1/8	54	2 1/8
  4FE-35(Y)	1	101.8	4	4.5	207	28	1 1/8	54	2 1/8
  6JE-22Y	3	95.3	6	4.75	213	35	1 3/8	54	2 1/8
  6JE-25(Y)	2				228
  6JE-33(Y)	1				231
  6HE-25Y	3	110.5	6	4.75	224	35	1 3/8	54	2 1/8
  6HE-28(Y)	2				228
  6HE-35(Y)	1				235
  6GE-30Y	3	126.8	6	4.75	228	35	1 3/8	54	2 1/8
  6GE-34(Y)	2				228
  6GE-40(Y)	1				238
  6FE-40Y	3	151.6	6	4.75	238	42	1 5/8	54	2 1/8
  6FE-44(Y)	2				241
  6FE-50(Y)	1				241
  8GE-50(Y)	2	185	8	5	342	42	1 5/8	76	3 1/8
  8GE-60(Y)	1				350
  8FE-60(Y)	2	221	8	5	361	54	2 1/8	76	3 1/8
  8FE-70(Y)	1				374

1. We are first level agent for offering you competitive price.

2. We have all Models available.

3. We prodive fast delivery within 1-7 days after payment.

4. We provide perfect after sales service.

5. We have regular clients of product from both home and abroad.

Features

1) New valve plate design

• New geometric concept for pressure valves – for low rear expansion.
• High cooling capacity with minimal energy requirements.
• The ECOLINE cylinder head system: Flexible operation in tandem.

2) Motor

• Efficient under full- and part-load thanks to its broadband characteristics.
• The universal refrigeration compressor: Motor version 2 for medium and low temperature applications.
• Motor versions 1 and 3 for special applications.

3) Capacity control

• The CRII system – intermittent blocked suction For example, 4-cylinder compressor with CRII on both heads: Range of control from 100% to ~10%
• ECOLINE VARISPEED – built-in frequency inverter

4) Downward compatible

• Essential internal components completely redesigned.
• Outer contour as standard: Every ECOLINE is downward compatible

Air cooled condensing unit for cold storage

Semi-hermetic refrigeration compressor 4FE-28-40P

Cold storage compressor with semi-hermetic design

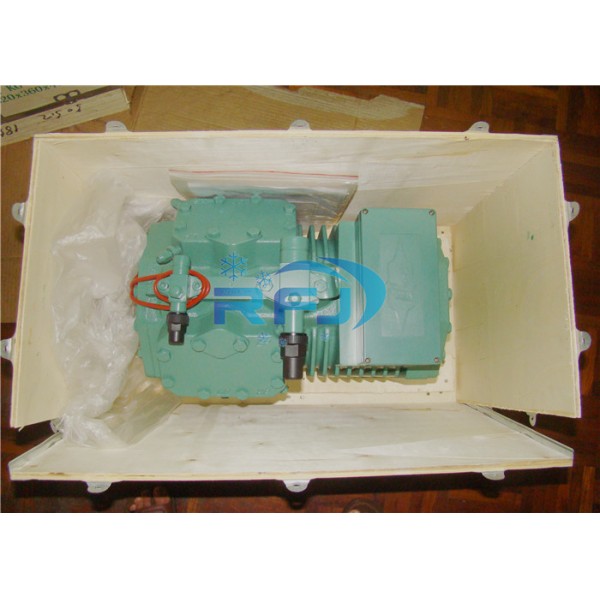

Air Cooled Condensing Unit Cold Storage Semi-hermetic Compressor All Models 4FE-28-40P Images
